Product
High EfficientAir Conditioning Application
XECOM®️ XA/XH Series Scroll Compressors
Product Description
XECOM®️ XA/XH
series scroll compressors
XA/XH Series Scroll Compressors have excellent capacity performance and energy efficiency level, all from XECOM unique ECO 3D scroll profile and Triple Dynamic Seal technology, plus low sound level operation from compact size design, optimized driving shaft system, and multi ports sound muffler.
Product Features
01
High Pressure Release Valve
Internal high pressure releasing to improve reliability
02
Triple Dynamic Seal
Three floating flexible O shape seal design, isolating high, medium, and low pressure chamber, for long term excellent overall performance
03
Vapor Injection (XAV Series)
Directly inject low temperature and low pressure vapor into scroll medium pressure pocket, improve Sub Cooling and increase compression ratio, for wider operation range, larger capacity, and higher efficiency ratio
04
Dual Compliance Technology
Radial and axial compliance scroll technology, liquid and debris handling capability to improve reliability and durability
05
Low Side Pressure Design
Suction gas motor cooling, higher durability
06
High Efficient Motor
Optimized stator slot design to improve motor efficiency, higher energy efficiency
01
02
03
04
05
06
07
08
09
10
11
07
Sound Muffler
Reduce discharge gas pulsation, lower sound level
08
Symmetric Scroll Profile
Balanced scroll force and reduce gas leakage between scroll pockets, lower sound level and higher energy efficiency
09
Suction Screen
Filter debris, improve reliability
10
Internal Line Break Motor Protection
Motor dual protection of high temperature and overload current, better durability
11
Dynamic Auto Balanced Oil Circulation
Dynamic centrifugal oil pump and reduce oil circulating rate, improve reliability
Product Details

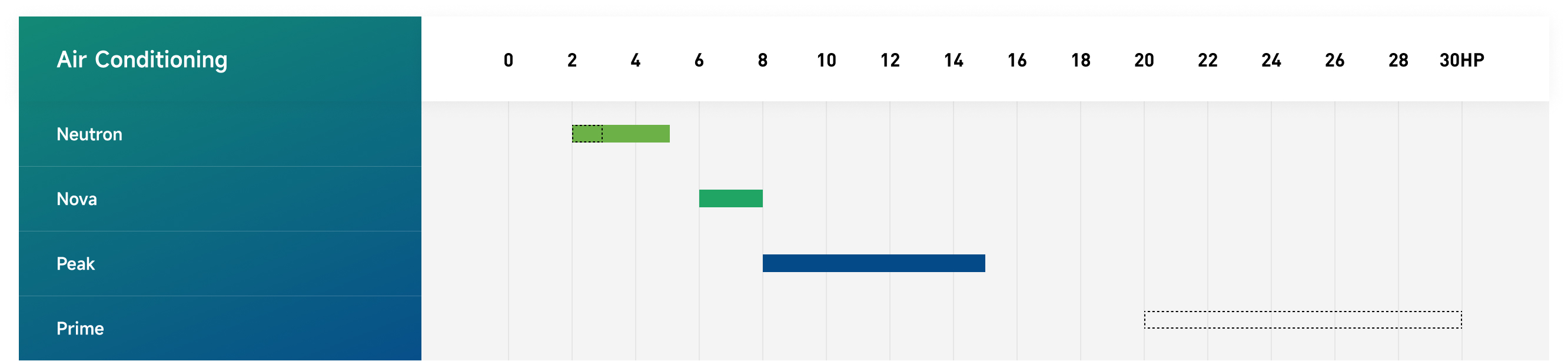

Product Range and Capacities
Product Catalogue
Looking for specific product model and technical specification, please download our latest product catalogue.
Download PDF
